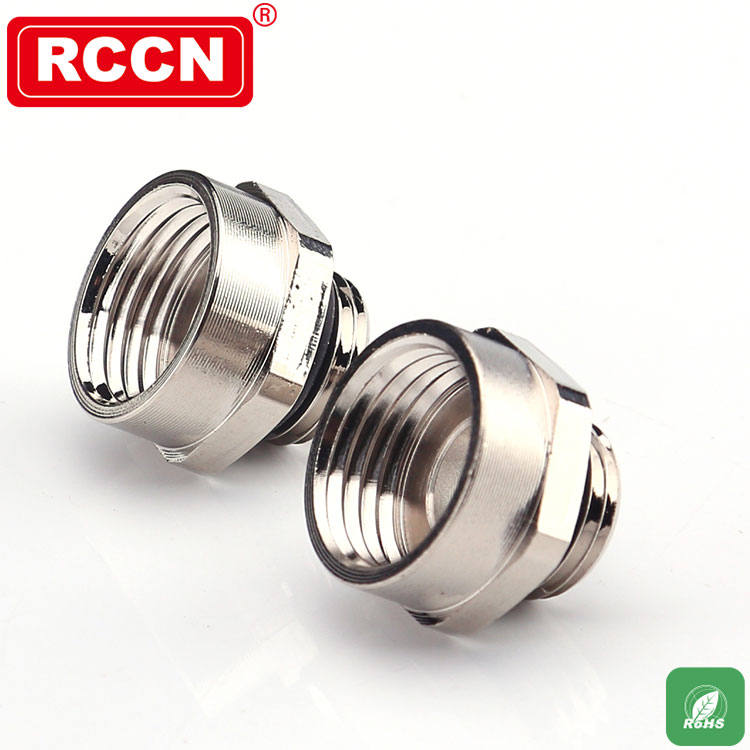

Material: Edelstahl 304, das Dichtungsmaterial ist modifizierter Gummi
Schutzstufe: IP68
Material: SUS304 , sealing : modified rubber
Protection degree : IP68
|
Modell Item No. |
Außengewinde outer thread |
Innengewinde inner thread |
Gewindelänge Thread length mm |
Gesamtlänge total length mm |
Schlüsselweite wrench size mm |
Verpackung Std.Pkg PCS |
| Sechskant-Reduzierring aus Edelstahl mit metrischem Gewinde REMS/ELMS-M | ||||||
| REMS-M16/M12 | M16xl.5 | M12x1.5 | 7 | 9.5 | 19 | 100 |
| ELMS-M18/M16 | M18xl.5 | M16x1.5 | 7 | 17 | 21 | 50 |
| REMS-M20/M16 | M20xl.5 | M16x1.5 | 7 | 9.5 | 24 | 50 |
| ELMS-M20/M18 | M20xl.5 | M18x1.5 | 7 | 17 | 24 | 50 |
| REMS-M24/M20 | M24xl.5 | M20x1.5 | 7 | 10 | 27 | 50 |
| REMS-M25/M20 | M25xl.5 | M20x1.5 | 7 | 10.5 | 28 | 50 |
| ELMS-M27/M25 | M27x2.0 | M25x1.5 | 8 | 19 | 30 | 25 |
| ELMS-M30/M27 | M30x2.0 | M27x2.0 | 8 | 19 | 34 | 25 |
| REMS-M32/M20 | M32xl.5 | M20x1.5 | 8 | 12 | 36 | 25 |
| REMS-M32/M25 | M32xl.5 | M25xl.5 | 8 | 12 | 36 | 25 |
| REMS-M36/M32 | M36x2.0 | M32x1.5 | 8 | 12 | 40 | 25 |
| REMS-M40/M32 | M40xl.5 | M32x1.5 | 9 | 14 | 45 | 25 |
| REMS-M50/M40 | M50xl.5 | M40x1.5 | 10 | 14 | 55 | 20 |
| REMS-M63/M50 | M63xl.5 | M50x1.5 | 10 | 14 | 70 | 10 |
| Sechskant-Reduzierring aus Edelstahl REMS-PG | ||||||
| REMS-PG9/PG7 | PG 9 | PG7 | 7 | 10 | 17 | 100 |
| REMS-PG11/PG9 | PG 11 | PG9 | 7 | 10.5 | 21 | 100 |
| REMS-PG13.5/PG11 | PG 13.5 | PG11 | 7 | 10.5 | 24 | 100 |
| REMS-PG16/PG13.5 | PG 16 | PG13.5 | 7 | 10.5 | 26 | 50 |
| REMS-PG21/PG16 | PG 21 | PG16 | 7 | 11 | 32 | 50 |
| REMS-PG29/PG21 | PG 29 | PG21 | 8 | 12 | 40 | 25 |
| REMS-PG36/PG29 | PG 36 | PG29 | 9 | 13.5 | 50 | 25 |
| REMS-PG48/PG42 | PG 48 | PG42 | 10 | 15 | 64 | 10 |
