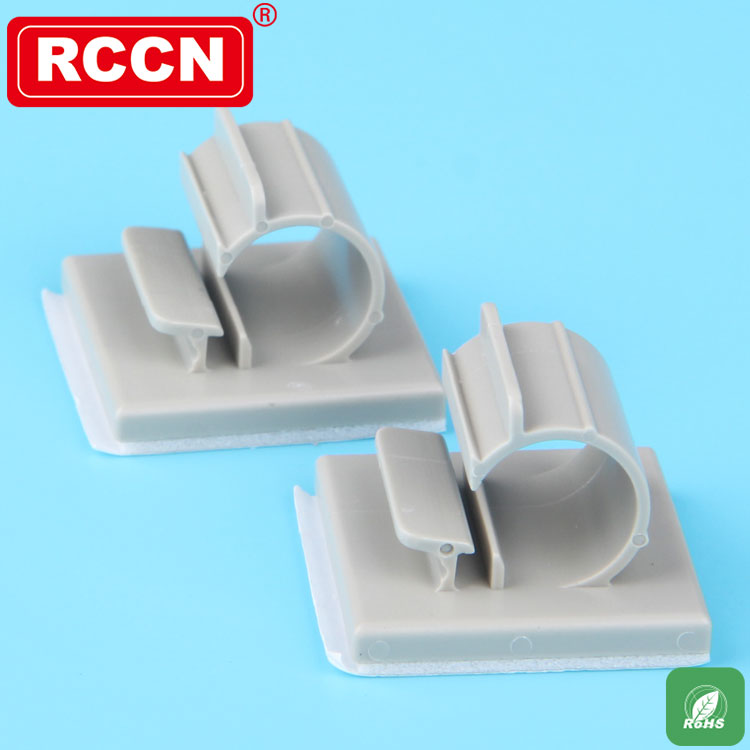

PC board clamping sleeve R021

Series: R021

Material: Richeng PC board clamp sleeve. Qualified NYLON66 (gray)
Fire rating: 94V-2, not easy to age, high insulation.
Usage: Drill the substrate, first fix the clamping sleeve, then put the wire to be fixed into the sleeve, and gently buckle the two sides to fasten the wire. It can be used as a fixed wire in any direction and angle. Use.

Clip sleeve, PC board clip sleeve

Spezifikation

model Item No.	A	B	C	D	E	package PCS
R021-15.9	18.8	15.9	12.7	7.8	9.7	1000PCS
R021-22.1	25.4	22.1	15.2	9.7	16	500PCS
R021-25.4		25.4	22.5	14.7	16	500PCS
R021-30.7		30.7	26.8	19	16.3	100PCS
R021-36.8	29.2	36.8	29.8	24.5	16.3	100PCS
