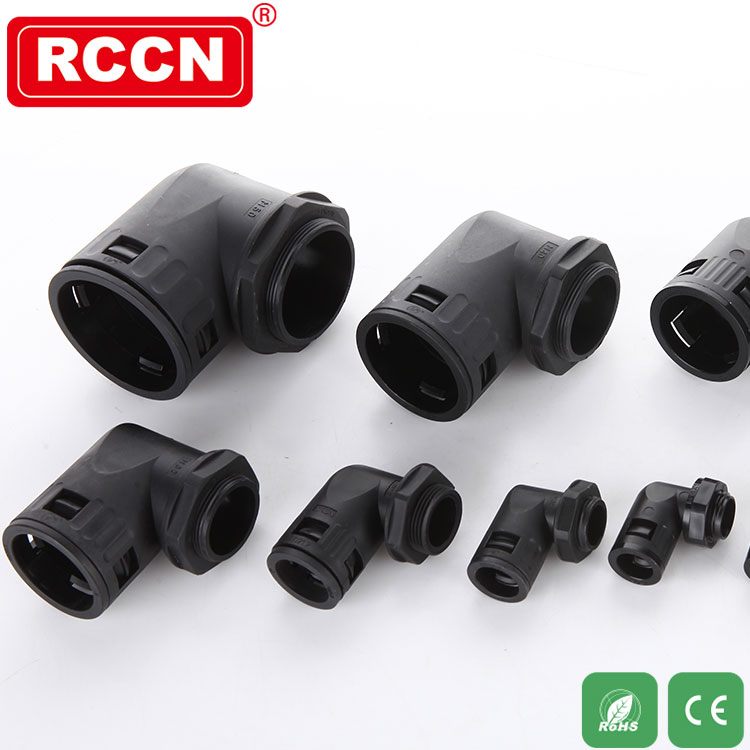

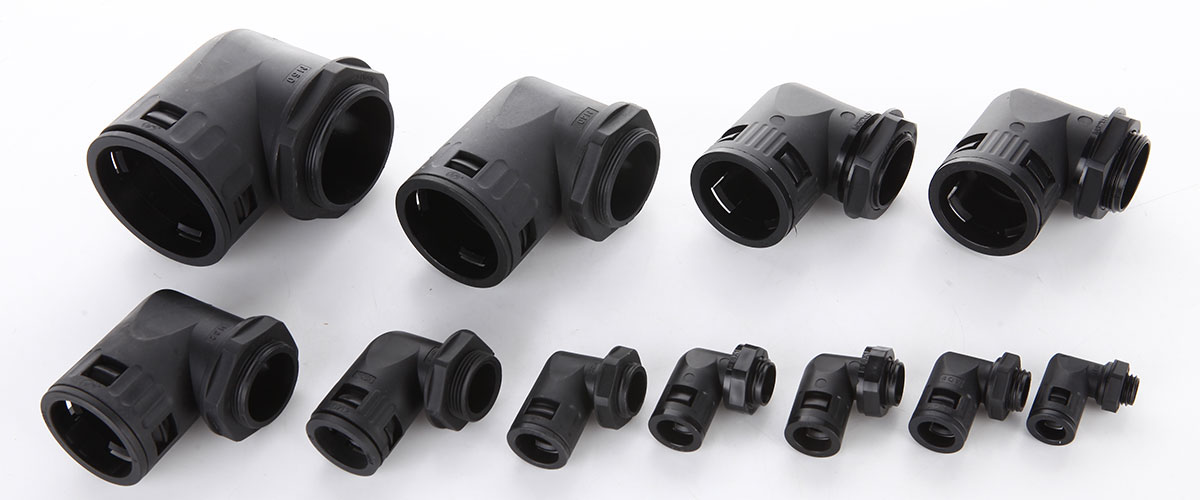

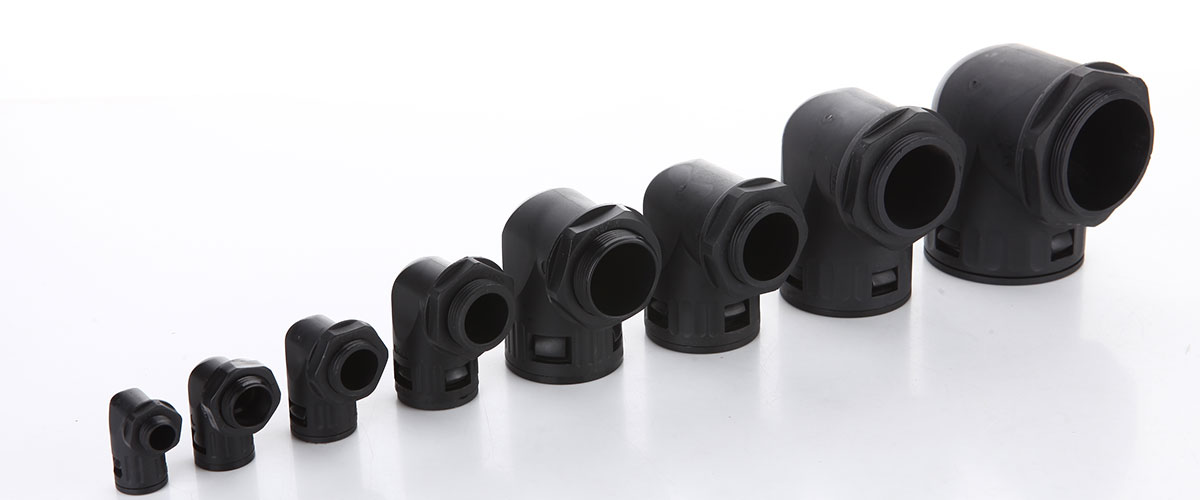

Rechtwinklig Schlauchverbinder

Thema: Metrisch: PG, NPT, G.
Material: NYLON66
Zertifikate: CE, ROHS
Brandschutzrate: UL94V-2
Farbe: Schwarz-B, Grau-G.
Arbeitstemperatur: -40 ° C bis 85 ° C
Features: Installieren oder Entladen ohne Werkzeuge,
Einfach die Leitung einführen oder ausgeben
Bemerkungen: Kommen Sie mit Kontermutter, aber ohne
Waschmaschine, muss separat kaufen

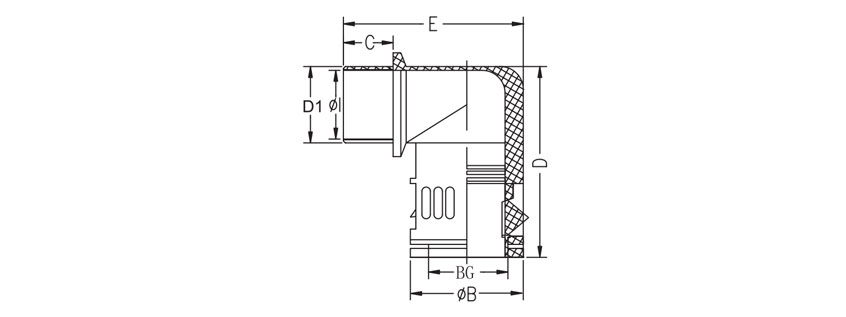

Artikelnummer .		Faden	Faden O.D. D1	Faden Länge GL	Kleinste innere 1Φ	Größten äußere BΦ	Gesamt Länge H
schwarz Ral9005	grau Ral7037	Faden	Faden O.D. D1	Faden Länge GL	Kleinste innere 1Φ	Größten äußere BΦ	Gesamt Länge H
Metrisches Gewinde BGW-M
BGW-M12B(BG07)	BGW-M12G(BG07)	M12×1.5	12.0	10.0	8.5	17.0	33.5
BGW-M16B(BG10)	BGW-M16G(BG10)	M16×1.5	16.0	10.0	12.0	20.0	36.0
BGW-M16B(BG12)	BGW-M16G(BG12)	M16×1.5	16.0	10.0	12.0	23.0	42.0
BGW-M18B(BG12)	BGW-M18G(BG12)	M18×1.5	18.0	10.0	15.5	23.0	42.0
BGW-M20B(BG12)	BGW-M20G(BG12)	M20×1.5	20.0	10.0	15.5	23.0	42.0
BGW-M20B(BG15)	BGW-M20G(BG15)	M20×1.5	20.0	11.0	13.5	26.5	46.0
BGW-M20B(BG17)	BGW-M20G(BG17)	M20×1.5	20.0	12.0	14.8	29.5	50.0
BGW-M22B(BG17)	BGW-M22G(BG17)	M22*1.5	22.0	12.0	18.0	29.5	59.0
BGW-M24B(BG17)	BGW-M24G(BG17)	M24×1.5	24.0	13.0	18.0	29.5	50.0
BGW-M25B(BG17)	BGW-M25G(BG17)	M25×1.5	25.0	13.0	14.8	29.0	46.0
BGW-M25B(BG23)	BGW-M25G(BG23)	M25×1.5	25.0	13.0	18.0	29.0	50.0
BGW-M32B(BG29)	BGW-M32G(BG29)	M32×1.5	32.0	15.0	24.0	44.0	67.5
BGW-M40B(BG36)	BGW-M40G(BG36)	M40×1.5	40.0	15.0	32.0	52.0	83.0
BGW-M50B(BG48)	BGW-M50G(BG48)	M50×1.5	50.0	16.0	39.0	64.0	88.0
BGW-M63B(BG48)	BGW-M63G(BG48)	M63×1.5	63.0	16.0	53.0	64.0	88.0
Deutschland-Thread BGW-P
BGW-PG7B(BG07)	BGW-PG7G	PG7	12.5	10.0	8.5	17.0	33.5
BGW-PG9B(BG10)	BGW-PG9G	PG9	15.2	10.0	12.0	20.0	36.0
BGW-PG11B(BG12)	BGW-PG11G	PG11	18.6	10.0	12.0	23.0	42.0
BGW-PG13.5B(BG15)	BGW-PG13.5G	PG13.5	20.4	11.0	13.5	26.5	46.0
BGW-PG13.5B(BG17)	BGW-PG13.5G	PG13.5	20.4	12.0	18.0	29.5	50.0
BGW-PG16B(BG17)	BGW-PG16G	PG16	22.5	12.0	18.0	29.5	50.0
BGW-PG21B(BG23)	BGW-PG21G	PG21	28.3	12.0	24.0	37.0	57.0
BGW-PG29B(BG29)	BGW-PG29G	PG29	37.0	12.0	32.0	44.0	67.5
BGW-PG36B(BG36)	BGW-PG36G	PG36	47.0	12.0	36.0	52.0	83.0
BGW-PG42B(BG48)	BGW-PG42G	PG42	54.0	14.0	48.0	64.0	88.0
BGW-PG48B(BG48)	BGW-PG48G	PG48	59.3	14.0	48.0	64.0	88.0
Metrisches Gewinde BGW1-M
BGW1-M12B(BG07)	BGW1-M12G(BG07)	M12×1.5	12.0	10.0	8.5	17.0	33.5
BGW1-M16B(BG10)	BGW1-M16G(BG10)	M16×1.5	16.0	10.0	12.0	20.0	36.0
BGW1-M16B(BG12)	BGW1-M16G(BG12)	M16×1.5	16.0	10.0	12.0	23.0	42.0
BGW1-M18B(BG12)	BGW1-M18G(BG12)	M18×1.5	18.0	10.0	15.5	23.0	42.0
BGW1-M20B(BG12)	BGW1-M20G(BG12)	M20×1.5	20.0	10.0	15.5	23.0	42.0
BGW1-M20B(BG15)	BGW1-M20G(BG15)	M20×1.5	20.0	11.0	13.5	26.5	46.0
BGW1-M20B(BG17)	BGW1-M20G(BG17)	M20×1.5	20.0	12.0	14.8	29.5	50.0
BGW1-M22B(BG17)	BGW1-M22G(BG17)	M22*1.5	22.0	12.0	18.0	29.5	59.0
BGW1-M24B(BG17)	BGW1-M24G(BG17)	M24×1.5	24.0	13.0	18.0	29.5	50.0
BGW1-M25B(BG17)	BGW1-M25G(BG17)	M25×1.5	25.0	13.0	14.8	29.0	46.0
BGW1-M25B(BG23)	BGW1-M25G(BG23)	M25×1.5	25.0	13.0	18.0	29.0	50.0
BGW1-M32B(BG29)	BGW1-M32G(BG29)	M32×1.5	32.0	15.0	24.0	44.0	67.5
BGW1-M40B(BG36)	BGW1-M40G(BG36)	M40×1.5	40.0	15.0	32.0	52.0	83.0
BGW1-M50B(BG48)	BGW1-M50G(BG48)	M50×1.5	50.0	16.0	39.0	64.0	88.0
BGW1-M63B(BG48)	BGW1-M63G(BG48)	M63×1.5	63.0	16.0	53.0	64.0	88.0
Deutschland-Thread BGW1-P
BGW1-PG7B(BG07)	BGW1-PG7G	PG7	12.5	10.0	8.5	17.0	33.5
BGW1-PG9B(BG10)	BGW1-PG9G	PG9	15.2	10.0	12.0	20.0	36.0
BGW1-PG11B(BG12)	BGW1-PG11G	PG11	18.6	10.0	12.0	23.0	42.0
BGW1-PG13.5B(BG15)	BGW1-PG13.5G	PG13.5	20.4	11.0	13.5	26.5	46.0
BGW1-PG13.5B(BG17)	BGW1-PG13.5G	PG13.5	20.4	12.0	18.0	29.5	50.0
BGW1-PG16B(BG17)	BGW1-PG16G	PG16	22.5	12.0	18.0	29.5	50.0
BGW1-PG21B(BG23)	BGW1-PG21G	PG21	28.3	12.0	24.0	37.0	57.0
BGW1-PG29B(BG29)	BGW1-PG29G	PG29	37.0	12.0	32.0	44.0	67.5
BGW1-PG36B(BG36)	BGW1-PG36G	PG36	47.0	12.0	36.0	52.0	83.0
BGW1-PG42B(BG48)	BGW1-PG42G	PG42	54.0	14.0	48.0	64.0	88.0
BGW1-PG48B(BG48)	BGW1-PG48G	PG48	59.3	14.0	48.0	64.0	88.0
