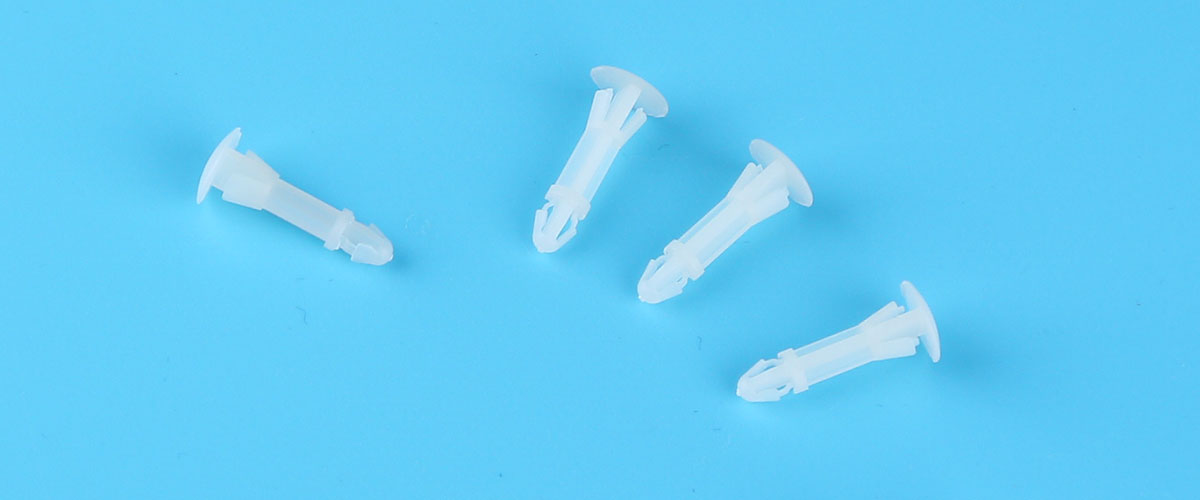

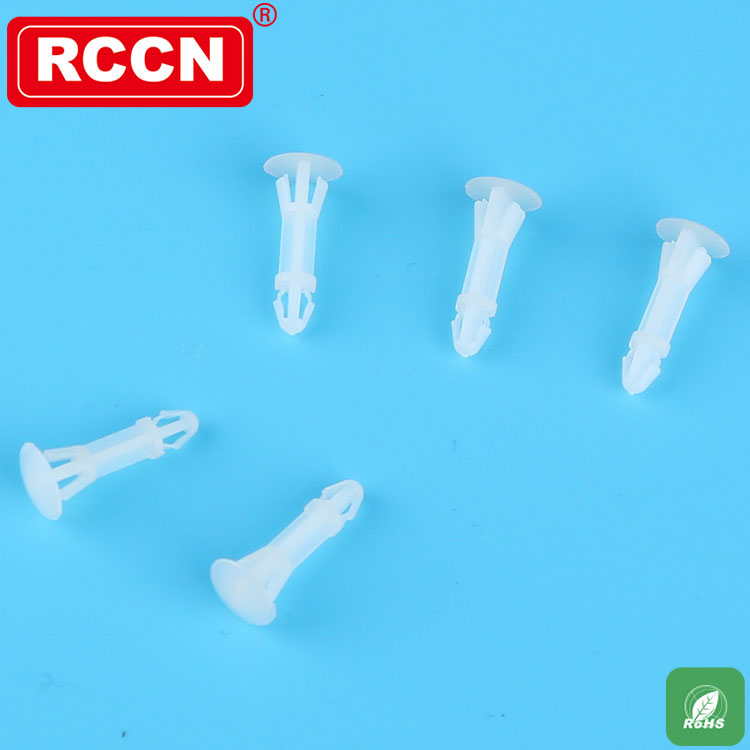

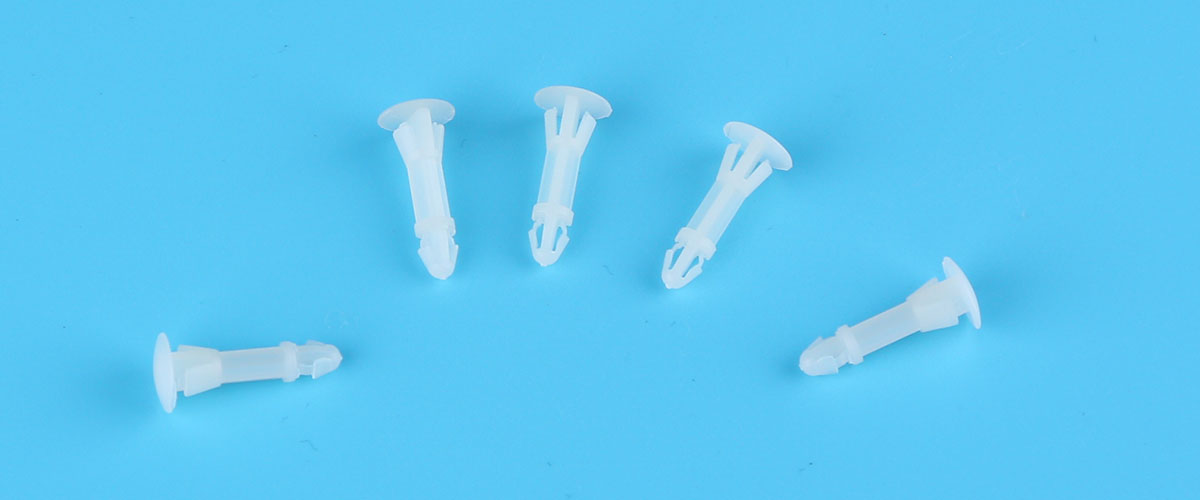

Flat isolation column RS

Flat isolation column

Material: flat isolation column RS type. Qualified NYLON66 (character), fire rating 94V-2, good insulation, not aging.

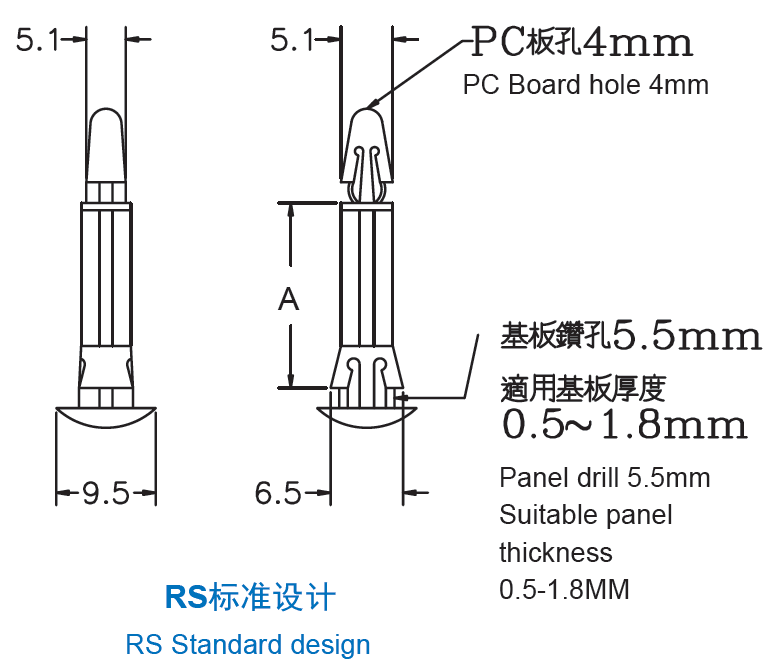

Usage: the first substrate drilling 5.5mmφ, then the isolation column from the bottom up into the fixed, then the PC board can be fixed.
Features: no tools, you can fix the PC board; replace or repair PC board, easy to disassemble.

Flat isolation column

Spezifikation

ModellItem No.	Die Entfernung zwischenA	On the hole Openings	On the hole Thickness	Lower hole Openings	Lower hole Thickness	VerpackungPacking
RS-3	3.5	3.5	1.8	5.5	1.4	1000pcs
RS-5	5.0	5.0	1.8	5.5	1.8
RS-6	6.4	6.0	1.8	5.5	1.8
RS-8	8.0	8.0	1.8	5.5	1.8
RS-8S	8.0	6.1	1.6	5.5	1.8
RS-10	9.6	9.8	1.8	5.5	1.8
RS-10L	10.8	9.8	1.8	5.5	1.8
RS-12	12.0	12.0	1.8	5.5	1.8
RS-14	14.0	14.0	1.8	5.5	1.8
RS-18	18.0	18.0	1.8	5.5	1.8
