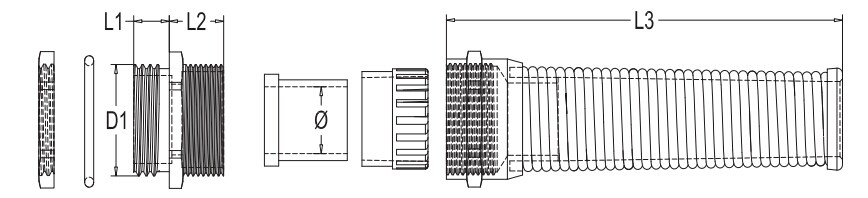

| ThreaFaden Länge M | Deutschland-Thread PG | Amerika-Faden NPT | Englischer Thread G |
Cable Range |
M |
PG |
NPT |
G |
Gemeinsame
Länge |
Schlüssel SW A/F |
| SR-M12×1.5-6.5 | SR-PG7-6.5 | SR-NPT1/4-6.5 | SR-G1/4-6.5 | 3-6.5 | 5 | 5 | 8 | 7 | 53 | 14 |
| SR-M16×1.5-8 | SR-PG9-8 | SR-NPT3/8-8 | SR-G3/8-8 | 4-8 | 6 | 6 | 15 | 8 | 66 | 17 |
| SR-M18×1.5-10 | SR-PG11-10 | SR-NPT3/8-10 | SR-G3/8-10 | 5-10 | 6 | 6 | 15 | 8 | 77 | 20 |
| SR-M22×1.5-12 | SR-PG13.5-12 | SR-NPT1/2-12 | SR-G1/2-12 | 6-12 | 6.5 | 6.5 | 13 | 8 | 88 | 22 |
| SR-M20×1.5-14 | SR-PG16-14 | SR-NPT1/2-14 | SR-G1/2-14 | 10-14 | 6.5 | 6.5 | 13 | 8 | 98 | 24 |
| SR-M25×1.5-18 | SR-PG21-18 | SR-NPT3/4-18 | SR-G3/4-18 | 13-18 | 7 | 5 | 15 | 8 | 111 | 30 |
| SR-M12×1.5-6.5 | SR-PG7-6.5 | 3-6.5 | 10 | 10 | / | / | 53 | 14 | ||
| SR-M16×1.5-8 | SR-PG9-8 | 4-8 | 10 | 10 | / | / | 66 | 17 | ||
| SR-M18×1.5-10 | SR-PG11-10 | 5-10 | 10 | 10 | / | / | 77 | 20 | ||
| SR-M20×1.5-12 | SR-PG13.5-12 | 6-12 | 10 | 10 | / | / | 88 | 22 | ||
| SR-M22×1.5-14 | SR-PG16-14 | 10-14 | 10 | 10 | / | / | 98 | 24 | ||
| SR-M25×1.5-18 | SR-PG21-18 | 13-18 | 12 | 12 | / | / | 111 | 30 | ||
