Artikelnummer.
|
Lochdurchmesser |
Tafel Dicke |
Länge | Breite | Max.BundleDia | Min. Zugfestigkeit |
Verpackung
|
||
| Weiß | Schwarz | mm | mm |
mm
|
mm
|
mm
|
lbs
|
kgs
|
|

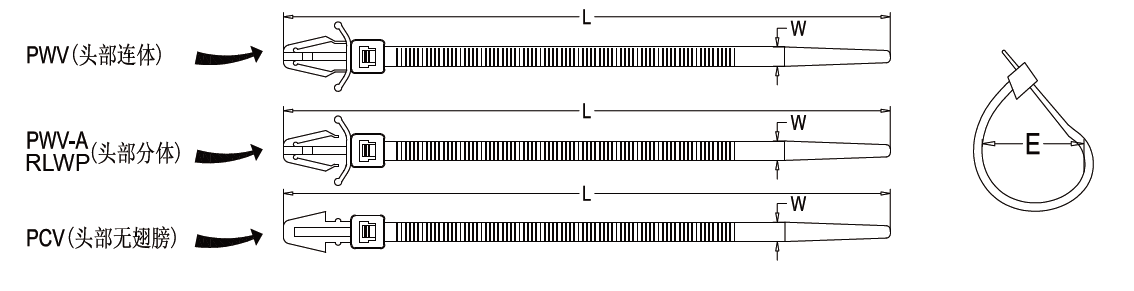

| PWV-A(Kopf getrennt) |
100pcs
|
||||||||
| PWV-110MA | PWV-110MBA | 4.8 | 2.4 | 110 | 2.5 | 28 | 18 | 8.1 | |
| PWV-130IA | PWV-130IAB | 4.0 | 2.4 | 130 | 3.2 | 28 | 18 | 8.1 | |
| PWV(Kopfanschluss) | |||||||||
| PWV-110M | PWV-110MB | 4.8 | 2.4 | 110 | 2.5 | 28 | 18 | 8.1 | |
| PWV-130I | PWV-130IB | 4.8 | 2.4 | 130 | 3.2 | 28 | 18 | 8.1 | |
| PWV-130M | PWV-130MB | 4.8 | 2.4 | 130 | 2.5 | 28 | 18 | 8.1 | |
| PWV-130ST | PWV-130STB | 6.4 | 3.2 | 135 | 4.8 | 25 | 50 | 22.2 | |
| PWV-170ST | PWV-170STB | 6.4 | 3.2 | 175 | 4.8 | 38 | 50 | 22.2 | |
| PWV-190ST | PWV-190STB | 6.4 | 3.2 | 202 | 4.8 | 45 | 50 | 22.2 | |
| PCV(Kopf ohne Schallwand) | |||||||||
| PCV-130I | PCV-130IB | 5.2 | 2.8 | 130 | 3.2 | 28 | 30 | 14.0 | |
| PCV-150I | PCV-150IB | 5.2 | 2.8 | 150 | 3.6 | 32 | 30 | 14.0 | |
| PCV-200ST | PCV-200STB | 6.3 | 3.6 | 200 | 4.8 | 46 | 50 | 22.2 | |
| RLWP(Kopf getrennt) | |||||||||
| RLWP1S | RLWP1SB | 4.7 | 4.0 | 130 | 4.8 | 25 | 50 | 22.2 | |
| RLWP1.5S | RLWP1.5S B | 4.7 | 4.0 | 170 | 4.8 | 38 | 50 | 22.2 | |
| RLWP2S | RLWP2S B | 4.7 | 4.0 | 200 | 4.8 | 45 | 50 | 22.2 | |
| RLWP1S-D | RLWP1SB-D | 4.7 | 2.4 | 130 | 4.8 | 25 | 50 | 22.2 | |
| RLWP1.5S-D | RLWP1.5SB-D | 4.7 | 2.4 | 170 | 4.8 | 38 | 50 | 22.2 | |
| RLWP2S-D | RLWP2SB-D | 4.7 | 2.4 | 200 | 4.8 | 45 | 50 | 22.2 | |
| RLWP1S-C | RLWP1SB-C | 6.4 | 2.7 | 130 | 4.8 | 25 | 50 | 22.2 | |
| RLWP1.5S-C | RLWP1.5SB-C | 6.4 | 2.7 | 170 | 4.8 | 38 | 50 | 22.2 | |
| RLWP2S-C | RLWP2SB-C | 6.4 | 2.7 | 200 | 4.8 | 45 | 50 | 22.2 | |
|
Material：NYLON66，feuerfest 94V-2。 |
| Artikelnummer. | Länge | Breite | Max. Bundle Dia. | Min. Zugfestigkeit | Verpackung | |||
| mm | Zoll | mm | mm | lbs | kgs | |||

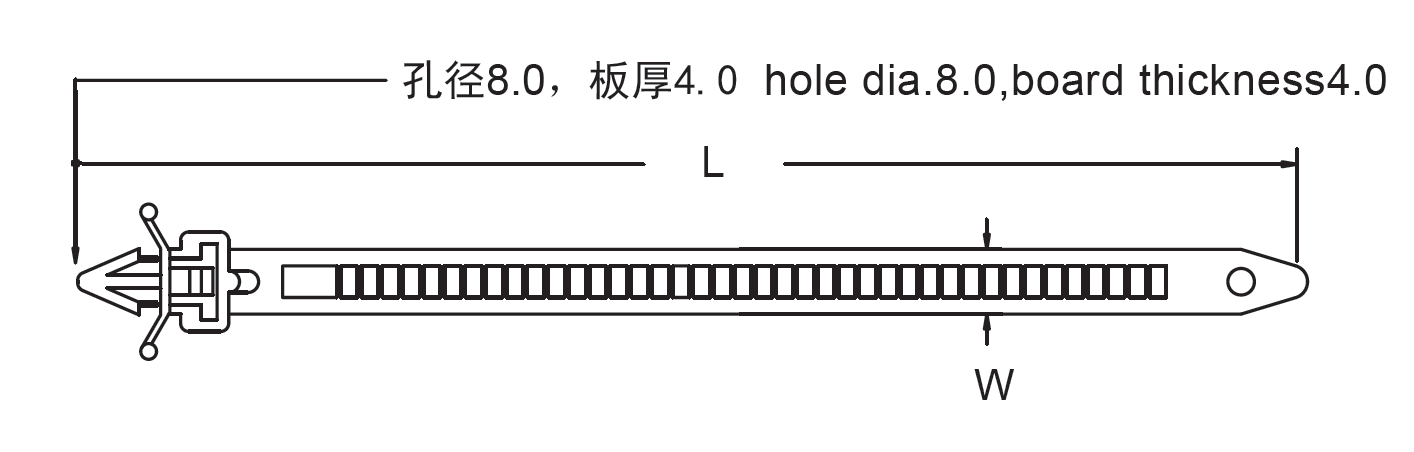

| PMT-175HD | PMT-175HDB | 175 | 7" | 8.0 | 45 | 90 | 40 | 100pcs |
| - | PMT-140HDB | 140 | - | 8.0 | 30 | 90 | 40 | 100pcs |
